Type-BSH

RUBBER PARTS
Material : NR - SBR - CR - EPDM
Hardness : 45 - 57 - 70 Shore A
Hardness Tolerance : ± 5 Shore A

METAL PARTS
Material : DIN EN 10111-98
Coating : DIN EN 12329-Fe // Zn // C Cr+3 Zinc Coated

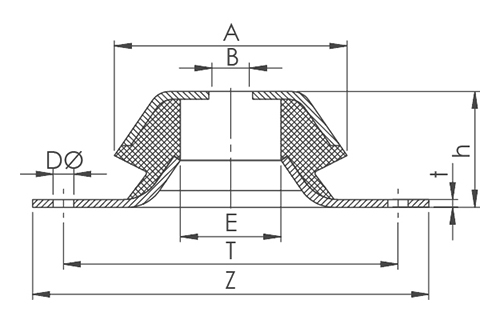

Ref. Nr. A D Ø B E h T Z t Load
type-BSH mm mm mm mm mm mm mm mm Kg
BSH62 62 10,2 12,5 25 30 85 100 2 200
BSH90 90 10,2 17 42 45 108 134 3 350
BSH115 115 16,2 24 60 45 160 190 4 600
Rubber Hardness and female sizes are available on changes duty customer applications. Customers are recommended to contact us for futher technical information.
We reserve the right to change design and specifications of our products without prior notification.
