Type-STM

RUBBER PARTS
Material : NR - SBR - CR - EPDM
Hardness : 45 - 57 - 70 Shore A
Hardness Tolerance : ± 5 Shore A

METAL PARTS
Material : DIN EN 10111-98
Coating : DIN EN 12329-Fe // Zn // C Cr+3 Zinc Coated

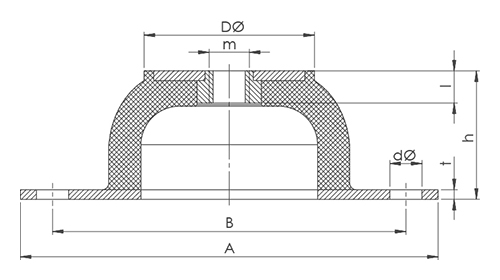

Ref. Nr. DØ B A H l d m
type-STM mm mm mm mm mm mm mm
STM25 33 66 85 25 11 8 M8
STM100 53 110 136 40 15 11,5 M10
Rubber Hardness and female sizes are available on changes duty customer applications. Customers are recommended to contact us for futher technical information.
We reserve the right to change design and specifications of our products without prior notification.
